Tower System Endura

Automatic
& Vertical

Vertical injection molding machine fully controllable from a touch screen that allows an easy, fast and highly automated process.

warranty-sticker

Tower System Endura

Automatic
& Vertical

Vertical injection molding machine fully controllable from a touch screen that allows an easy, fast and highly automated process.

Description

The TOWER SYSTEM ENDURA injector is complete with an RFID reader that recognizes and decodes the parameters inside the mold’s microchip, makes the production work less expensive and does not burden the operator.

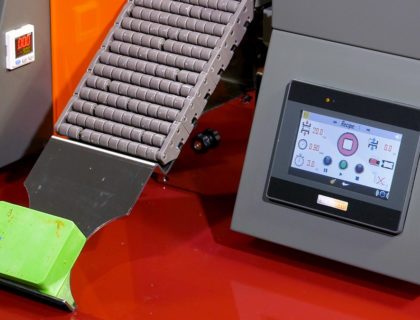

The cycle takes place through a vertical tower similar to a cartridge for loading and after the injection the unloading is automatic on a roller conveyor; the operator does not have to be synchronized with the machine so that there is no downtime, only has to extract the wax from the mold and reinsert the rubber in the loader. It is a machine for immediate use, which maximizes the simplification of the production process, without losing the strength and reliability of the entire system.

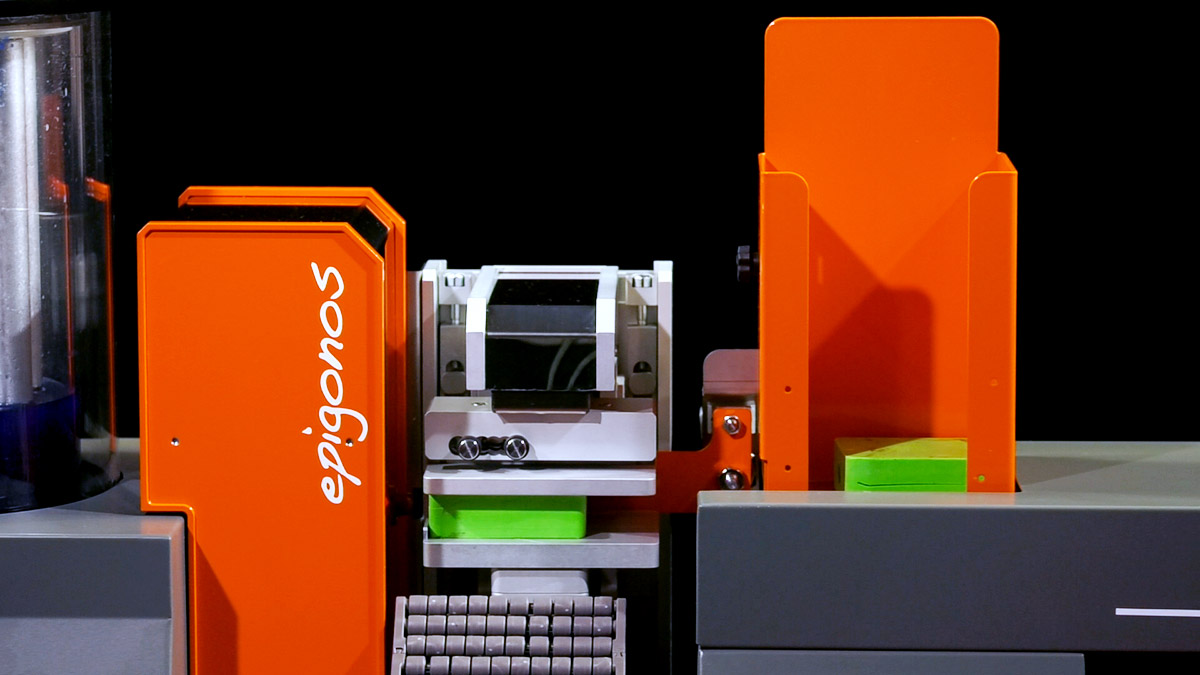

The electronics reduced to a minimum, an interface with industrial touch screen, easy maintenance and powder-coated aluminum and stainless-steel surfaces make this injector particularly reliable and suitable even for the most difficult environments. It is equipped with a transparent melting tank with a constant vacuum system, a vacuum switch to check the vacuum in the mold, an RFID reader, an 8-cmc injection syringe with final temperature regulation and a self-centering clamp with 120x90mm plates.

Gallery

Technical specifications

  • Moulds
    • Min 50 x 30 x 12 mm
    • Max 120 x 90 x 47 mm
  • Machine
    • 58 kg
    • 90 x 38 x 53 cm
  • Box
    • 90 kg
    • 123 x 50 x 70 cm
Data Sheet VIDEO

Characteristics and components

Color touch screen
Pure italian technology
3 years warranty
Customizables models
High production
RFID microchips
Full automatic machine
Different size of mould
Digital vacuum switch
Endurance
Vertical loading of moulds

Compatible optionalsTower System Endura
