Automatic Belt System Intuitive

Automatic
& Fast

Fully controllable from a tablet, it can double the standard daily production, realizing up to 4800 pieces in 8 hours, injecting moulds of very different sizes with the help of only one operator and reducing the number of defective waxes.

Description

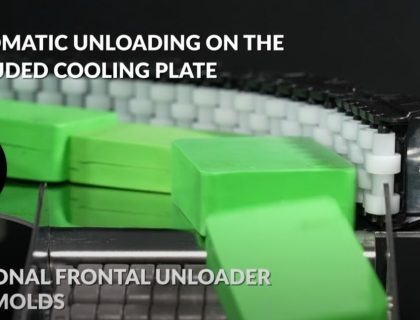

The AUTOMATIC BELT SYSTEM INTUITIVE injector belongs to the Intuitive line and retains all its features; it can inject up to 20 molds of different sizes at the same time by loading them automatically and speeding up the entire production process thanks to the self-centering function on the molds of different sizes; it can create light and very thin objects, maintaining their weight over time.

An Android tablet is the control unit of both the machine and the loading system, with specially developed apps that also allow to check statistics and productivity. Its interconnect-ability to the outside world makes it compatible for Industry 4.0.

It is equipped with a transparent melting tank with a constant vacuum system, digital sensors to control the pressures that always allow to check the graphs of the vacuum trend on the molds during injection from the tablets, a RFID reader, a TC-700 cooler, an 8-cmc injection syringe with final temperature regulation and self-centering clamp with 120x90mm plates.

Gallery

Technical specifications

  • Moulds
    • Min 50 x 30 x 12 mm
    • Max 120 x 90 x 47 mm
  • Machine
    • 75 kg
    • 130 x 72 x 53 cm
  • Box
    • 73 kg
    • 83 x 50 x 70 cm
    • 64 kg
    • 102 x 92 x 48 cm
Data Sheet Video

Characteristics and components

10.1′ tablet included
Pure italian technology
3 years warranty
4.0 Industry
High production
Vacuum chart
RFID microchips
Recipes with photos
Production APP
Full automatic machine
Different size of mould
Cooler included
Statistics APP
Horizontal loading of moulds

Compatible optionalsIntuitive Belt System

  • Mold Slide
