BI HYDRO ENDURA cod. 17382

3D WAX PIECES

Fully controllable from a 7″ color touch screen, it gives the possibility to produce about 480 3D hollow pieces of small and medium size per day with any standard wax thanks to the metal tank divided into two parts: one for wax and one for hydro resin.

warranty-sticker

BI HYDRO ENDURA cod. 17382

3D WAX PIECES

Fully controllable from a 7″ color touch screen, it gives the possibility to produce about 480 3D hollow pieces of small and medium size per day with any standard wax thanks to the metal tank divided into two parts: one for wax and one for hydro resin.

Description

The BI HYDRO ENDURA injector is characterized by two independent non-expandable workstations, two melting tanks for the simultaneous use of two types of waxes, the consistency of the pieces’ weight over time and by two 7″ color touch screens that are the control unit.

It combines an aggressive design with an essential line, which characterizes and enhances its strength and sturdiness, resulting in a machine with a slender line with two workstations.

Injector with essential electronics, equipped with 7″ touch screen interface, allows a total control on the injection process, easy maintenance and powder-coated aluminum and stainlesssteel surfaces make this injector particularly reliable and suitable even for the most difficult environments.

It is equipped in both workstations, with vacuum switches to check the vacuum in the mold, RFID readers, 8-cmc injection syringes with final temperature regulation and self-centering clamps with 120x90mm plates.

Gallery

Technical specifications

  • Moulds
    • Min 50 x 30 x 12 mm
    • Max 120 x 90 x 47 mm
  • Machine
    • 54 kg
    • 90 x 38 x 53 cm
  • Box
    • 85 kg
    • 123 x 50 x 70 cm
Data Sheet VIDEO

Characteristics and components

Custom color
Made in Italy technology
3 years warranty
7" Color touch screen
Customizables models
High production
RFID microchips
Interchangeable clamps
Double working stations
Different size of mould
Digital vacuum switch
Endurance
Big clamps
Hydroresin process
3D Hollow wax pieces

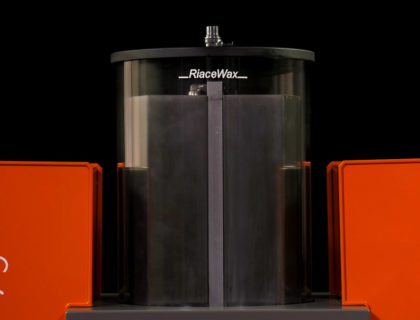

Double tank

Compatible optionals Bi Hydro Endura

  • Big Clamps
    • 135x135 mm
    • 140x180 mm
    • 160x180 mm
  • Plates
    • 120x120 mm
    • 130x120 mm
  • Syringe 32cmc
  • Double Pump
